DW-BJDXCLIENT

Blackjack DX Workstation
Find a Reseller Request a Demo Contact Us FAQs
Features
  • Supports all ONVIF conformant IP cameras
  • Connect up to two (2) monitors simultaneously (DW-BJDXCLIENT2)
  • Connect up to four (4) monitors simultaneously (DW-BJDXCLIENT4)
  • Local monitoring ports for DW Spectrum servers monitoring
  • Windows 11 IoT Enterprise LTSC
  • OS on separate SSD reduces the risk of data corruption
  • Hosting DW Spectrum client for monitoring
  • USB mouse and keyboard included for local setup and control
  • Designed, assembled and tested in the U.S.A.
  • NDAA/TAA compliant for federal and government projects
  • 5 Years limited warranty

Learn about how DW
solutions can work for you

View All Markets

Blackjack Workstations

Using a dedicated workstation to monitor a surveillance system offers better performance, enhanced reliability, and greater system longevity. By offloading live viewing and playback from the server, the workstation ensures smooth video monitoring without overburdening the server, which can then focus on recording and system management. This separation also improves system stability, reduces the risk of crashes, and allows for more flexible, multi-user access.

DW Spectrum

DW Spectrum is an endlessly customizable IP Video Management platform that gives users the ability to create tailored network video solutions for any type of project, from the office or on in the field.

Dual network cards

Optimize network bandwidth by utilizing dual network ports, to build a separate network for the surveillance system and keep that traffic off the main network, reserved for the NVR’s communication.

Designed and commissioned in the U.S.A

All DW recorders, workstations and NAS devices are designed, assembled and inspected in our California facility. Each product undergoes multiple levels of quality control to guarantee the highest quality and performance.

Specifications

Hardware
CPU Intel i7® processor (DW-BJDXCLIENT2)
Intel i9 processor (DW-BJDXCLIENT4)
Display Speed Up to 30fps per channel
Local Video Output Resolution 7680x4320 (8K) per port

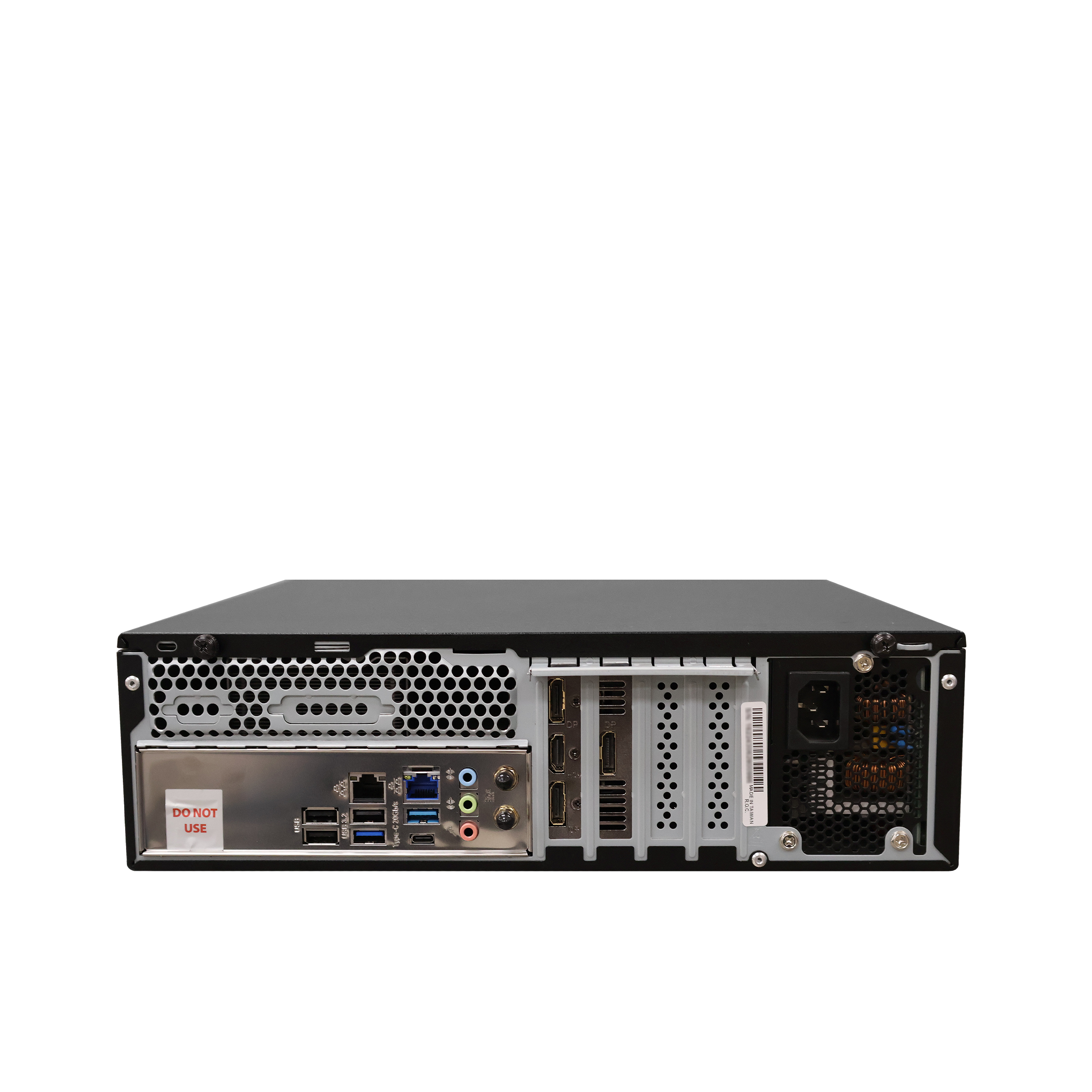

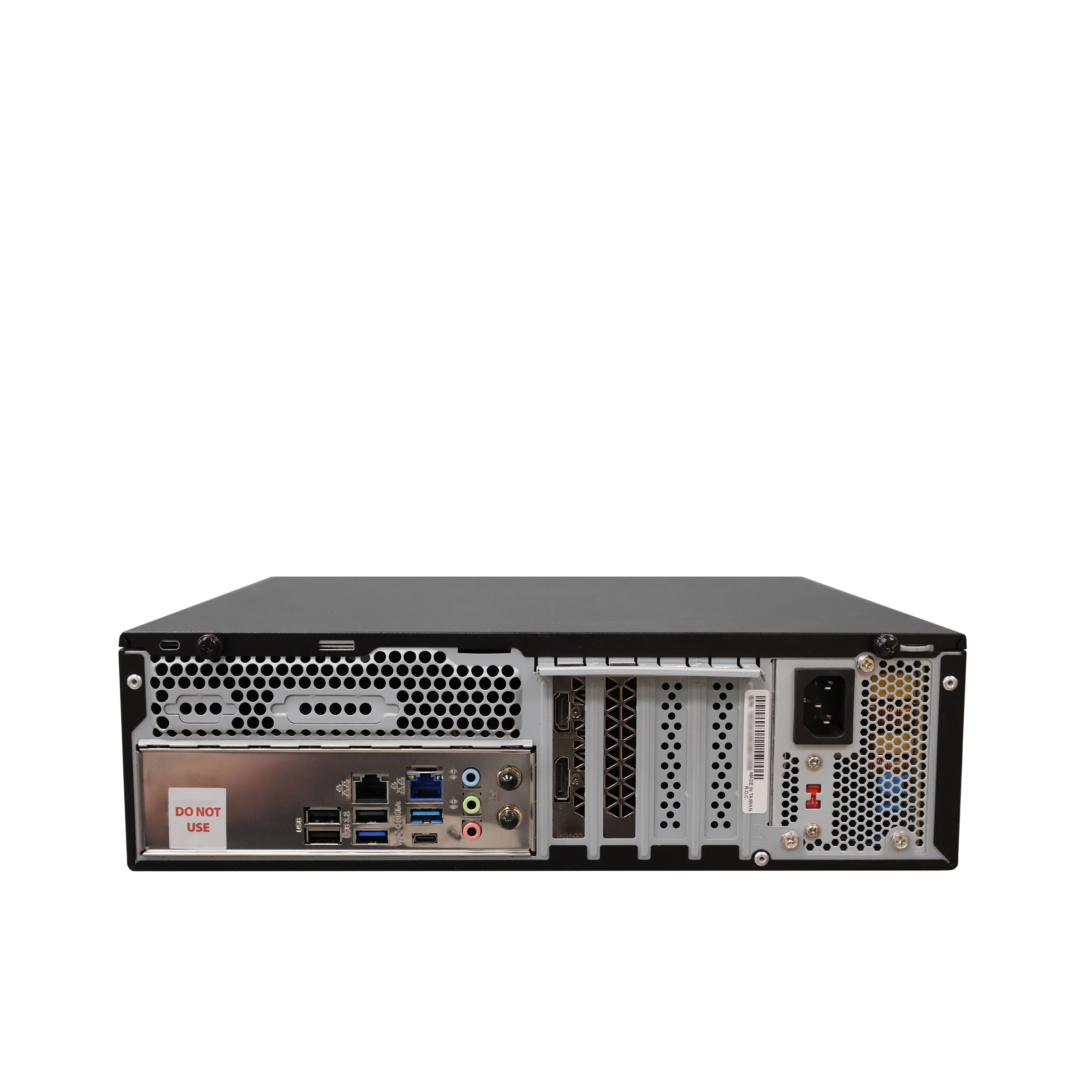

Local Video Outputs 1x True HD output, 1x DisplayPort output (DW-BJDXCLIENT2)
1x True HD output, 3x DisplayPort outputs (DW-BJDXCLIENT4)
Up to 2 ports simultaneously (DW-BJDXCLIENT2)
Up to 4 displays simultaneously (DW-BJDXCLIENT4)
Memory 16GB (DW-BJDXCLIENT2)
32GB (DW-BJDXCLIENT4)
Video Card nVidia® RTX 5060 8GB (DW-BJDXCLIENT4)
nVidia® RTX 3050 6GB (DW-BJDXCLIENT2)
OS on SSD 256GB M.2 SSD
Storage
Raw internal storage options 004TB
Max HDD Bay 1 x SATA HDD
Maximum Storage For local video export
VMS features
Playback Functions Calendar
Event search
Smart motion search
Thumbnail search
Timeline
PTZ control ONVIF
System Operation Graphical user interface (GUI)
Remote via DW Spectrum
USB mouse (included)
Network
Ethernet Ports 1x 1G Ethernet (RJ45)
1x 2.5Gb Ethernet (RJ45)
Pre-loaded VMS software DW Spectrum® Client
General
Accessories Keyboard
Mouse
Operating Temperature and Humidity 20 ~ 90% RH
41 ~ 104 °F (5~40 °C)
Recorder Dimensions (H X W X D) Standing: 13.1” x 3.88” x 15.8” (334 x 98.5 x 402 mm)
Desktop: 3.88” x 13.1” x 15.8” (98.5 x 334 x 402 mm)
USB interface Yes
Warranty 5 Year Limited Warranty
Weight (barebone, HDD not included) 15.65 lbs (7.09 kg)
Certification NDAA  ONVIF Conformant  TAA Compliance
Form Factor Slim Desktop

Part Numbers

Model #

Options

DW‐BJDXCLIENT2 Two (2) simultaneous monitors
DW‐BJDXCLIENT4 Four (4) simultaneous monitors

Purchasing Options

DW Spectrum IPVMS Licensing Options

Part Number

Description

DW-SPECTRUMLSC001
Single DW Spectrum License, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLSC004
Four (4) DW Spectrum Licenses, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLSC010
Ten (10) DW Spectrum Licenses, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLSC020
Twenty (20)  DW Spectrum Licenses, No Annual Renewal, No Upgrade Required.required.
DW-SPECTRUMLSC050
Fifty (50)  DW Spectrum Licenses, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLSC100
One Hundred (100)  DW Spectrum Licenses, No Annual Renewal, No Upgrade Required.
DW-SPCP04LSC004
Single DW Spectrum License - allows up to 4-channel or recording when used with DW-ENC4K16,  No Annual Renewal, No Upgrade Required.
DW-SPCP04LSC016
Single DW Spectrum License - allows up to 16-channel or recording when used with DW-ENC4K16,  No Annual Renewal, No Upgrade Required.
DW-SPIOLSC001 IP I/O Module License - Supported devices IP I/O Modules are automatically discovered and can be used to trigger system events, actions, and alerts.
DW-SPVWALL1X2Single DW Spectrum Video Wall License - 1 Operator, 2 Monitors,  No Annual Renewal, No Upgrade Required.

Documents

Title Type
DW-BJDXCLIENT datasheet
pdf Download
DW-BJDXCLIENT quick setup guide
pdf Download
DW-BJDXCLIENT CAD drawing
dwg Download
Blackjack Brochure
pdf Download
View All Documents

Software

Title Type Release Notes Version Update Date Compatibility Size
DW Spectrum Latest Software Ext. URL v6.0.3.40736 05/06/2025 N/A Download
View All Software
